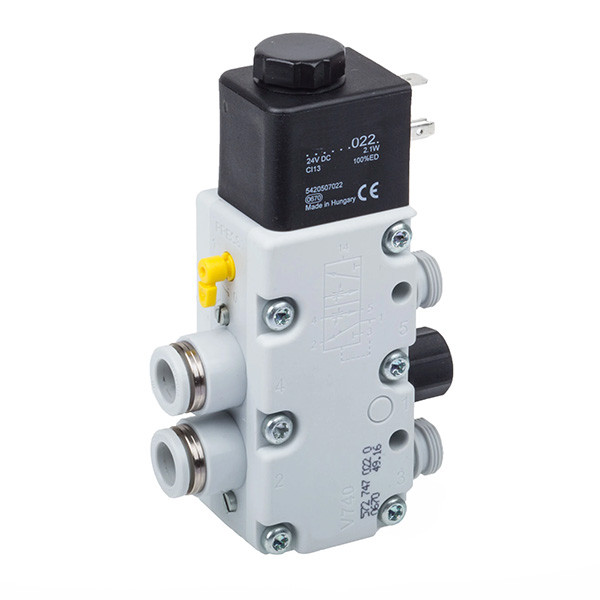

5727470220 Aventics Series 740 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series 740 5/2-Directional Valve, Single Solenoid, Electrical Activation, Diaphragm Poppet Valve, 5/2, with Air Spring Return, Soft Seal, with Detent, 10 Diam. Compressed Air Connection Output, 1100 l/min Nominal Flow, 1.5 to 10 bar Working Pressure, Plug Connection, EN 175301-803, Form A, IP65, Internal Pilot, Protected Against Polarity Reversal, 24 VDC Operational Voltage, -10% / +10% Voltage Tolerance, 30 mm Coil Width, Compatibility Index 52, 2.1W Power Consumption, 100% Duty Cycle, 17 ms Switch-on Time, 26 ms Switch-off Time.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series 740
Product Type: Directional Valves
