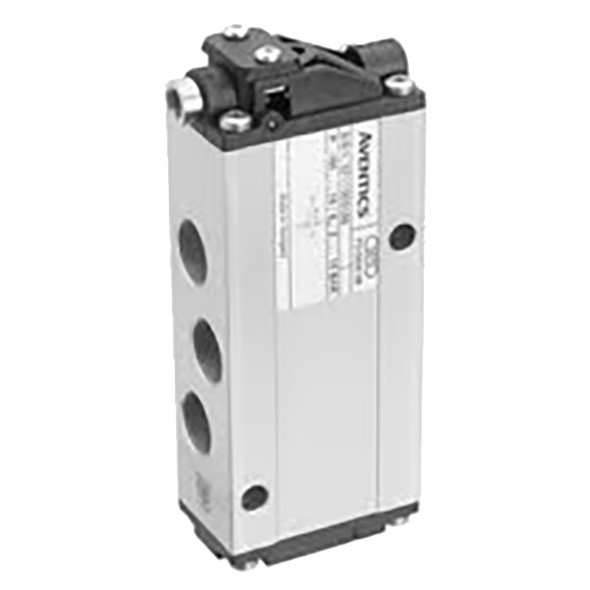

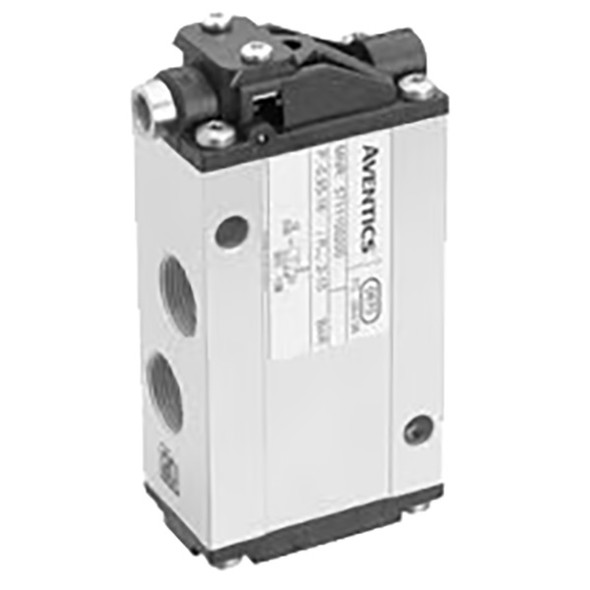

5711000000 Aventics Series CD12 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series CD12 5/2-Directional Valve, Pneumatically Operated, Spool Valve, Positive Overlapping, 5/2, with Air Spring Return, Soft Seal, Pipe Connection, M22x1.5 Compressed Air Connection Input/Output/Exhaust, G 1/8 Compressed Air Connection Pilot Input, 4100 l/min Nominal Flow, 0.95 to 16 bar Working Pressure, 2 to 10 Bar Control Pressure, -25 to 70 Deg C Ambient/Medium temperature, 50 Micron Max. Particle Size, ATEX, Aluminum, Polyamide, Fiber-Glass Reinforced Housing Material.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series CD12
Product Type: Directional Valves
