50201UH04TXCFDUNHPU Ashcroft 201 Welded Diaphragm Seal

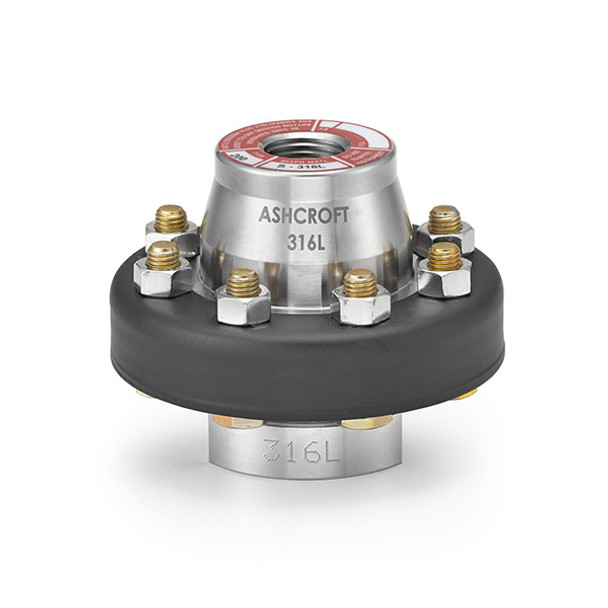

Image may represent a range of products. Product may vary based on listed specifications.

Ashcroft 201 Welded Diaphragm Seal, 1/2 in. NPT Female Process Connection, Welded (metallic) or Bonded (elastomeric) to Top Housing, Flushing Port in Lower Housing, Tantalum Diaphragm, Hastelloy C-276 Bottom Housing, 1/2 in. NPT Female Instrument Connection, Halocarbon 4.2 Fill Fluid, Pipe Plug for Flushing Connection, High-Pressure Clamping Rings, Stainless Steel Instrument Tag, Instrument Welded to Top Housing.

Manufacturer: Ashcroft
DOCS_Ashcroft 100, 200, 300 Series Threaded Seals Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/ashcroft-100-200-300-series-threaded-seals-pg-150_151_175-catalog.pdf
DOCS_Ashcroft 102-103/202-203/302-303 Flanged Seals Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/ashcroft-102-103-202-203-302-303-series-flanged-seals-pg-164_165-catalog.pdf
Diaphragm Material: Tantalum
Housing Material: Hastelloy C-276
LINKS_Browse All 200-201 Products: /manufacturers/ashcroft/200-201
LINKS_Browse All Ashcroft Products: /manufacturers/ashcroft
Product Category: Diaphragm Seals
Product Family: 201
Product Type: Welded Diaphragm Seals
