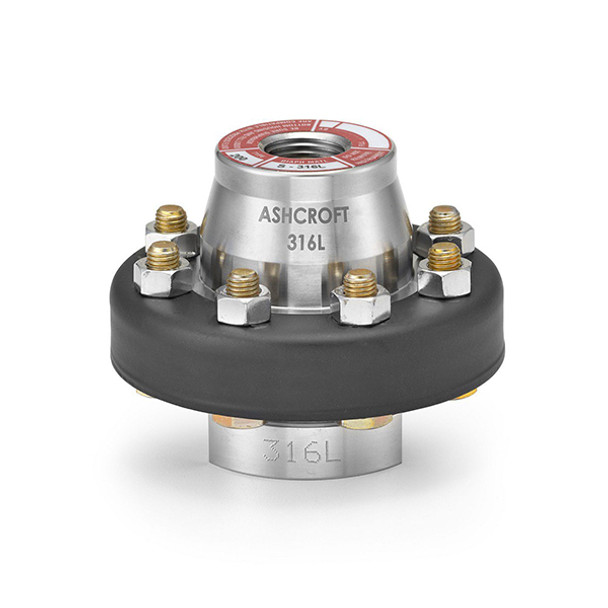

50101SS02TXCGPU Ashcroft Model 101 Threaded Diaphragm Seal

Image may represent a range of products. Product may vary based on listed specifications.

Ashcroft Model 101 Threaded Diaphragm Seal, 1/2 in. NPT Female Process Connection, Threaded into Top Housing, Flushing Port in Lower Housing, 316L Stainless Steel Diaphragm, 316L Stainless Steel Bottom Housing, 1/4 in. NPT Female Instrument Connection, Glycerin Fill Fluid, Pipe Plug for Flushing Connection.

Manufacturer: Ashcroft
DOCS_Ashcroft 100, 200, 300 Series Threaded Seals Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/ashcroft-100-200-300-series-threaded-seals-pg-150_151_175-catalog.pdf
DOCS_Ashcroft 102-103/202-203/302-303 Flanged Seals Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/ashcroft-102-103-202-203-302-303-series-flanged-seals-pg-164_165-catalog.pdf
Diaphragm Material: 316L Stainless Steel
Housing Material: 316L Stainless Steel
LINKS_Browse All 100-101 Products: /manufacturers/ashcroft/100-101
LINKS_Browse All Ashcroft Products: /manufacturers/ashcroft
Product Category: Diaphragm Seals
Product Family: 101 Series
Product Type: Capsule Diaphragm Seals
