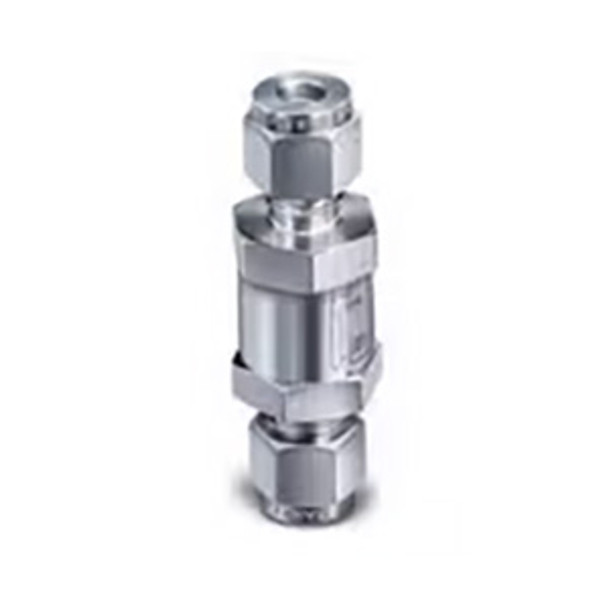

4A-CO4L-50-V-SS Parker IVD CO Series Check Valve

Image may represent a range of products. Product may vary based on listed specifications.

Parker IVD CO Series Check Valve, O-Ring Poppet Valve, 1/4 in. A-LOK Compression Inlet & Outlet (Port 1 & 2), 50 psi Cracking Pressure, Fluorocarbon Rubber Seat, 316 Stainless Steel Body, 6000 psig CWP, 0.62 Cv Max, -15 to 400 F Deg Temperature Rating.

Manufacturer: Parker Hannifin
DOCS_CATALOG: Parker Check Valves (CO Series): https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-co-series-check-valves.pdf
Body Material: 316 Stainless Steel
End 1 Size: 1/4 in.
End 1 Type: Double Ferrule Compression
End 2 Size: 1/4 in.
End 2 Type: Double Ferrule Compression
Max. Temperature: 400°F
Pressure Rating: 6000 PSIG
Product Family: CO Series
Seat Material: Fluorocarbon
Brand/Division: Instrumentation Products
LINKS_Browse All CO Series Products: /manufacturers/parker/co-series
LINKS_Browse All Parker Hannifin Products: /manufacturers/parker
Product Category: Valves
Product Type: Check Valves
