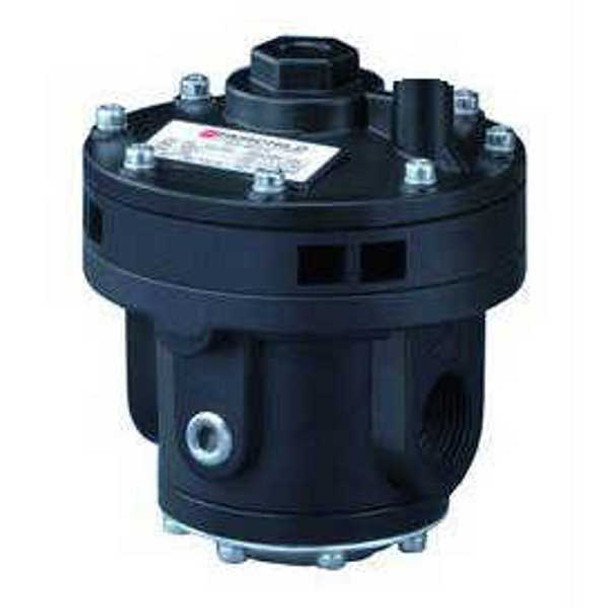

4556AE Fairchild Model 4500A Pneumatic Volume Booster 3:1 ratio

Image may represent a range of products. Product may vary based on listed specifications.

Rotork Fairchild Products Model 4500A Pneumatic 3:1 Volume Booster, 3/4 FPT line, 1/4 FPT signal, 1/4 FPT gauge, 250psig [17 BAR] max, 50psig [3.5 BAR] max output, 150 SCFM [255m3/Hr] @ 100 psig/20psig setpoint, 0.5 psi accuracy, Nitrile on Dacron, tapped exhaust

  • Manufacturer: Fairchild Products
  • Accuracy: 0.50 psi
  • Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C)
  • Base Model: 4556A
  • Body Material: Aluminum
  • Elastomer: Nitrile on Dacron
  • Exhaust Capacity: 40 SCFM [65.2m³/hr] where downstream pressure is 5 psi above 20 psi setpoint
  • Exhaust Type: [E] Tapped exhaust 1/2 FPT
  • Flow Capacity: 150 SCFM
  • FlowCv: 3
  • Mounting: Wall (20555-1 bracket required)
  • Operator: Pneumatic Pilot Signal
  • Options: [E] Tapped exhaust
  • Pipe Size: 3/4 FPT
  • Pressure Range: 0 to 50 psi
  • Product Family: Model 4500A
  • Product Type: Pneumatic Volume Boosters
  • Ratio: 3:01
  • RatioAccuracy: 3.0% of output span with 100 psi input span
  • Sensitivity: 2 in. WC
  • Supply Pressure: 250 psi
  • DOCS_Fairchild Safety Guide: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-safety-guide-2010.pdf
  • DOCS_Fairchild Model 4500A Pneumatic Volume Booster: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-model-m4500a-pneumatic-volume-booster-2007-manual.pdf
  • DOCS_Fairchild Model 4500A Pneumatic Volume Booster Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-model-m4500a-pneumatic-volume-booster-2012-datasheet.pdf
  • DOCS_Fairchild CRN Numbers: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-crn-numbers-2010.pdf
  • Product Category: Pneumatic Volume Boosters
  • DOCS_Fairchild Pneumatic Pressure Regulator Product Matrix: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/rotork-fairchild-pneumatic-pressure-regulators-catalog.pdf
