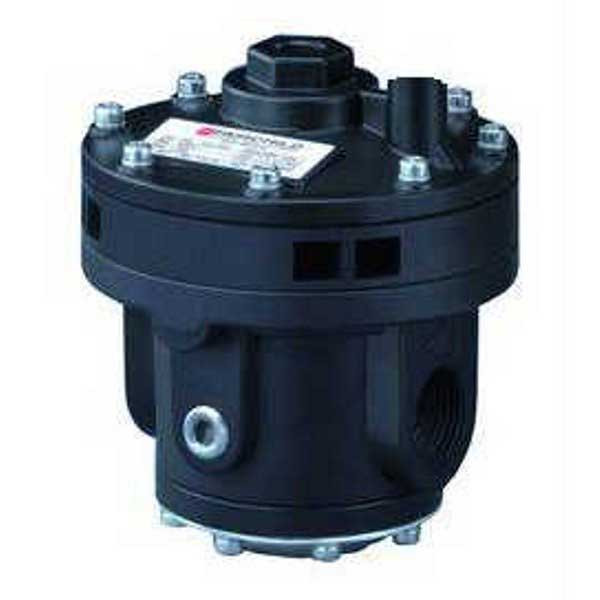

4526AJ Fairchild Model 4500A Pneumatic Volume Booster 1:2 ratio

Image may represent a range of products. Product may vary based on listed specifications.

Rotork Fairchild Products Model 4500A Pneumatic 1:2 Volume Booster, 3/4 FPT line, 1/4 FPT signal, 1/4 FPT gauge, 250psig [17 BAR] max, 150psig [10 BAR] max output, 150 SCFM [255m3/Hr] @ 100 psig/20psig setpoint, 0.5 psi accuracy, Viton.

Manufacturer: Fairchild Products
DOCS_Fairchild CRN Numbers: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-crn-numbers-2010.pdf
Accuracy: 0.50 psi
Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C)
Base Model: 4526A
Body Material: Aluminum
Elastomer: Viton
Exhaust Capacity: 40 SCFM [65.2m³/hr] where downstream pressure is 5 psi above 20 psi setpoint
Exhaust Type: Straight (standard)
Flow Capacity: 150 SCFM
FlowCv: 3
Mounting: Wall (20555-1 bracket required)
Operator: Pneumatic Pilot Signal
Options: [J] Viton
Pipe Size: 3/4 FPT
Pressure Range: 0 to 150 psi
Product Family: Model 4500A
Product Type: Pneumatic Volume Boosters
Ratio: 1:02
RatioAccuracy: 3.0% of 100 psi output span
Sensitivity: 2 in. WC
Supply Pressure: 250 psi
LINKS_Browse All Fairchild Products Products: /manufacturers/fairchild-industrial-products
LINKS_Browse All Model 4500A Products: /manufacturers/fairchild-industrial-products/model-4500a
DOCS_Fairchild Safety Guide: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-safety-guide-2010.pdf
DOCS_Fairchild Model 4500A Pneumatic Volume Booster: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-model-m4500a-pneumatic-volume-booster-2007-manual.pdf
DOCS_Fairchild Model 4500A Pneumatic Volume Booster Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-model-m4500a-pneumatic-volume-booster-2012-datasheet.pdf
Product Category: Pneumatic Volume Boosters
DOCS_Fairchild Pneumatic Pressure Regulator Product Matrix: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/rotork-fairchild-pneumatic-pressure-regulators-catalog.pdf
