351490A02LXZY15IW Ashcroft Low Pressure Diaphragm Gauge

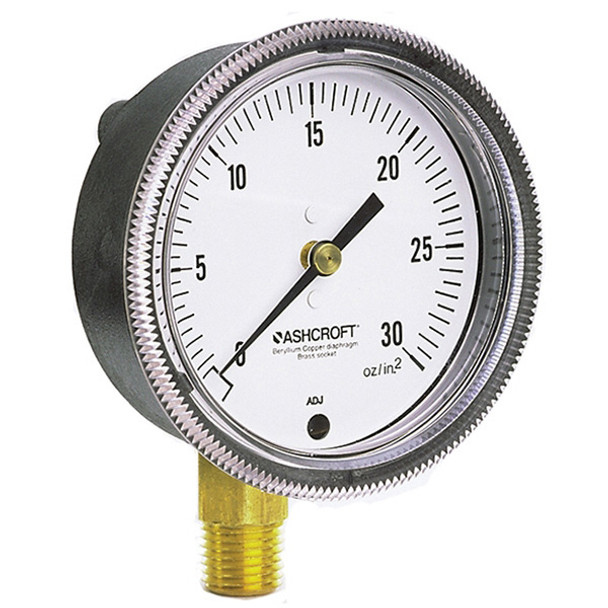

Image may represent a range of products. Product may vary based on listed specifications.

Ashcroft 1490 Low Pressure Diaphragm Gauge, 1/4" MPT, 0 to 15 inH2O, +/-2/1/2% Accuracy, 3-1/2" Aluminum Dial, Adjustment Screw Black Pointer, Brass Socket/Movement, Glass Filled Polysulfone Black Case, Bayonet Window, Threaded Polycarbonate Ring, Lower, Single Scale, Low Pressure Diaphragm Gauge.

Manufacturer: Ashcroft
LINKS_Browse All 1490 Products: /manufacturers/ashcroft/1490
LINKS_Browse All Ashcroft Products: /manufacturers/ashcroft
DOCS_Ashcroft 1490 Diaphragm Gauges/1495 Receiver Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/ashcroft-1490-series-diaphragm-gauges-pg-36_37-catalog.pdf
Accuracy: ± 2%
Connection Location: Lower Mount
Dial Material: Aluminum
Dial Size: 3-1/2 in.
Display Type: Dial
Enclosure Material: Glass Filled Polysulfone
Full-Scale Accuracy: ± 2%
Max. Pressure: 15 inH2O
Mid-Scale Accuracy: ± 1%
Min. Pressure: 0 inH2O
Mounting Type: Panel
Pointer Color: Black
Pointer Material: Aluminum
Pointer Type: Adjustment Screw
Product Family: 1490
Sensor Element: Brass Socket
Temperature Rating: -40° to 180 °F (Ambient)
Connection Size: 1/4 in.
Enclsoure Color: Black
Product Category: Pressure Gauges
Product Type: Diaphragm Gauges
Filled: Dry
Pressure Range Type: Low Pressure Range
Pressure Range: 0 to 15 in H2O
