3.0 DS696-CS-60M Titan FCI Model DS 696-CS Flanged Duplex Basket Strainer, 3" Raised-Face

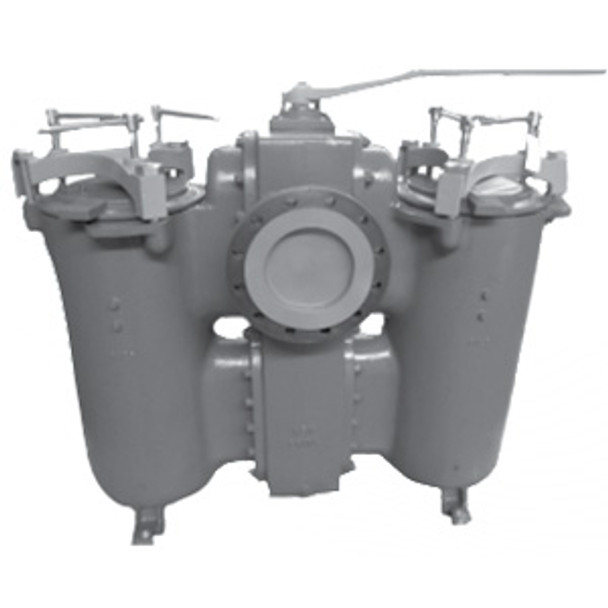

Image may represent a range of products. Product may vary based on listed specifications.

Titan Flow Control Model DS 696-CS Flanged Duplex Basket Strainer, ANSI Class 150, Carbon Steel (A216 Gr. WCB), 285 psi @ 150 °F, 3" Raised-Face, 60 Mesh SS Basket, Buna-N Cover O-Ring & Basket Seal Gasket, Quick-Open Cover, Quad Ball Type CS Lever Operator, PTFE Seat.

  • Manufacturer: Titan
  • Product Category: Strainers
  • Product Type: Duplex
  • ANSI Class: ANSI Class 150
  • Basket Type: 60 Mesh SS Basket
  • Body Material: Carbon Steel
  • Connection Size: 3"
  • Connection Type (Inlet/Outlet): Raised-Face
  • Cover Seal Gasket: Buna-N
  • Cover Type: Quick-Open Cover
  • DOCS_Titan FCI Basket Strainers IOM: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/titan-basket-strainers-iom.pdf
  • DOCS_Titan FCI Model DS 696-CS Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/titan-ds_695-ci_ds_696-cs_ds_696-ss-duplex-strainers-datasheet.pdf
  • DOCS_Titan Flow Control Catalog: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/titan-flow-control-catalog.pdf
  • Lever Type: Quad Ball Type CS Lever Operator
  • Max Pressure: 285 psi @ 150 °F
  • No. of Baskets: 2
  • Product Family: Model DS 696-CS
  • Seal Material: Buna-N
  • Seat Material: PTFE

3.0 DS696-CS-60M
