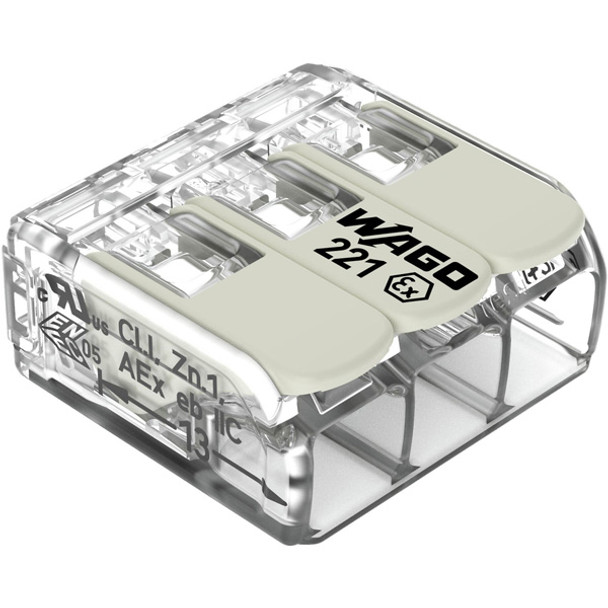

221-683 WAGO 221 Series 3-Wire Splicing Connector w/ Levers - Suitable for Ex Eb Applications

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 221 Series 3-wire splicing connector with levers, Suitable for Ex eb applications, for 0.5mm2...6mm2 / for #20AWG...#10AWG, Rated current (Ex e II) 37A, Transparent housing / Light gray lever color, with CAGE-CLAMP spring connections, equivalent to 221683.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 221 Series
Product Type: Connectors
Actuator color: light gray
Ambient air temperature for operation: -55°C...+105°C
Ambient air temperature for storage: -40°C...+60°C
Approvals for marine applications additional text: EN 60998
Color: Gray
Connection 1 - Actuation type: Lever
Connection 1 - Connectable conductor materials: Copper
Connection 1 - Connection technology: CAGE CLAMP<sup®</sup
Connection 1 - Fine-stranded conductor: 0.5 | 6 mm² / 20 | 10 AWG
Connection 1 - Nominal cross-section: 6 mm² / 10 AWG
Connection 1 - Solid conductor: 0.5 | 6 mm² / 20 | 10 AWG
Connection 1 - Stranded conductor: 0.5 | 6 mm² / 20 | 10 AWG
Connection 1 - Wiring direction: Side-entry wiring
Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
Continuous operating temperature: -55 | +105 °C
Cross-section (mm2): 0.5mm2| 0.75mm2| 1mm2| 1.5mm2| 2.5mm2| 4mm2| 6mm2
Depth: 21.1 mm / 0.831 inches
Dimensions: H10.1mm x W22.9mm x D21.1mm
Ex information - Rated current (Ex e II): 37A
Ex information - Rated voltage EN (Ex e II): 440V
Ex information - Ratings per: ATEX: PTB 19 ATEX 1001 U / IECEx: PTB 19.001 1U (Ex eb IIC Gb)
Fire load: 0.097MJ
Flammability class per UL94: V2
General approvals additional text: IEC 60998|EN 60998|UL 486C
Height: 10.1 mm / 0.398 inches
Insulation material: Polycarbonate (PC)
Material: Polycarbonate (PC)
Material group: IIIa
Rated operating voltage (Ue): (UL) 440V|(Ex e II) 440V
Ratings per IEC/EN - Ratings per: IEC/EN 60079-7
Ratings per UL - Approvals per: UL 60079
Ratings per UL - Rated current UL (Use Group C): 30A
Ratings per UL - Rated voltage UL (Use Group C): 440V
Total number of connection points: 3
Total number of potentials: 1
Weight: 4.3g
Width: 22.9 mm / 0.902 inches
Connection type (electrical): Terminals (Cage-clamp)
Product Category: Parts & Accessories
