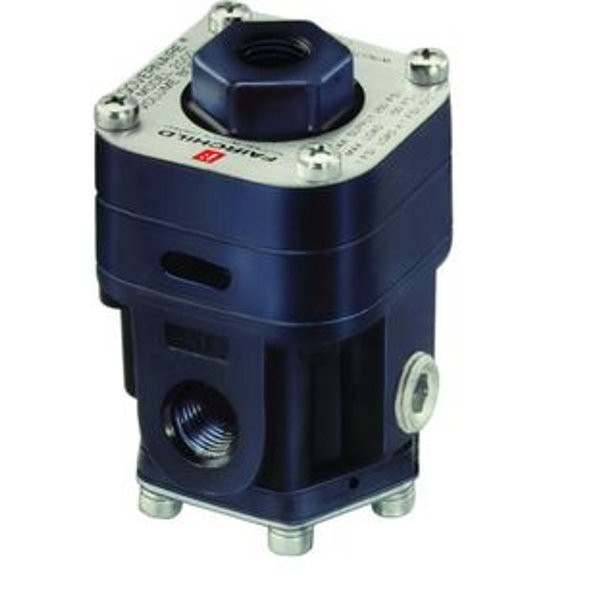

2012 Fairchild Model 2000 Pneumatic Volume Booster, 1:1 Ratio

Image may represent a range of products. Product may vary based on listed specifications.

Fairchild Model 2000 Pneumatic Volume Booster, 1:1 ratio, 250 psi [17 BAR] supply, 40 SCFM [68m3/Hr]@100 psi supply/20 psi set, 150 psi [10 BAR] max output, 1/4 FPT line, 1/4 FPT gauge, 1/4 FPT signal, Nitrile on Dacron.

Manufacturer: Fairchild Products
DOCS_Fairchild Safety Guide 2010: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-safety-guide-2010.pdf
DOCS_Fairchild Model 2000 Pneumatic Volume Booster 2006: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-model-m2000-pneumatic-volume-booster-2006-manual.pdf
DOCS_Fairchild Model 2000 Pneumatic Volume Booster: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-model-m2000-pneumatic-volume-booster-2006-datasheet.pdf
Accuracy: 0.50 psi
Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C)
Base Model: 2012
Body Material: Zinc
Connection Size: 1/4 in. NPT
Elastomer: Nitrile on Dacron
Exhaust Capacity: 16 SCFM [27.2m³/hr] where downstream pressure is 5 psi above 20 psi setpoint
Exhaust Type: Straight (standard) 3/16 x 9/16
Flow Capacity: 40 SCFM (68 m³/hr)
FlowCv: Approximately 1
Max. Output Pressure: 150 psig
Max. Supply Pressure: 250 psig
Mounting: Line
Operator: Pneumatic Pilot Signal
Options: None
Pipe Size: 1/4 FPT
Pressure Range: 0 to 150 psi
Product Family: Model 2000
Product Type: Pneumatic Volume Boosters
Ratio: 1:01
Sensitivity: <1 in. WC
Signal to Output Pressure Ratio: 1:01
Supply Pressure: 250 psi
CUSTOM_DisplayPartNumber: 2012
