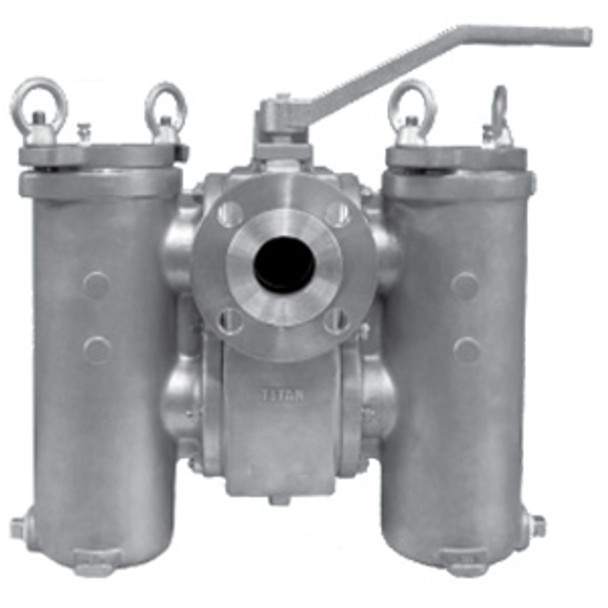

2.5 DS596-SS-60M Titan FCI Model DS 595-CI Threaded Duplex Basket Strainer, 2-1/2" FNPT, 60 Mesh SS Basket

Image may represent a range of products. Product may vary based on listed specifications.

Titan Flow Control Model DS 595-CI Threaded Duplex Basket Strainer, ANSI Class 125, Stainless Steel (A351 Gr. CF8M), 200 psi @ 150 °F, 2-1/2" FNPT, 60 Mesh SS Basket, Viton Cover O-Ring & Basket Seal Gasket, Eyebolt Open Cover, Dual Ball Type CS Lever Operator, PTFE Seat.

  • Manufacturer: Titan
  • Product Category: Strainers
  • Product Type: Duplex
  • ANSI Class: ANSI Class 125
  • Basket Type: 60 Mesh SS Basket
  • Body Material: Stainless Steel
  • Connection Size: 2-1/2"
  • Connection Type (Inlet/Outlet): FNPT
  • Cover Seal Gasket: Viton
  • Cover Type: Eyebolt Open Cover
  • DOCS_Titan FCI Basket Strainers IOM: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/titan-basket-strainers-iom.pdf
  • DOCS_Titan FCI Model DS 595-CI Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/titan-ds_595-ci_ds_695-ci-duplex-strainers-datasheet.pdf
  • DOCS_Titan Flow Control Catalog: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/titan-flow-control-catalog.pdf
  • Lever Type: Dual Ball Type CS Lever Operator
  • Max Pressure: 200 psi @ 150 °F
  • No. of Baskets: 2
  • Product Family: Model DS 595-CI
  • Seal Material: Viton
  • Seat Material: PTFE

2.5 DS596-SS-60M
