Parker Hannifin

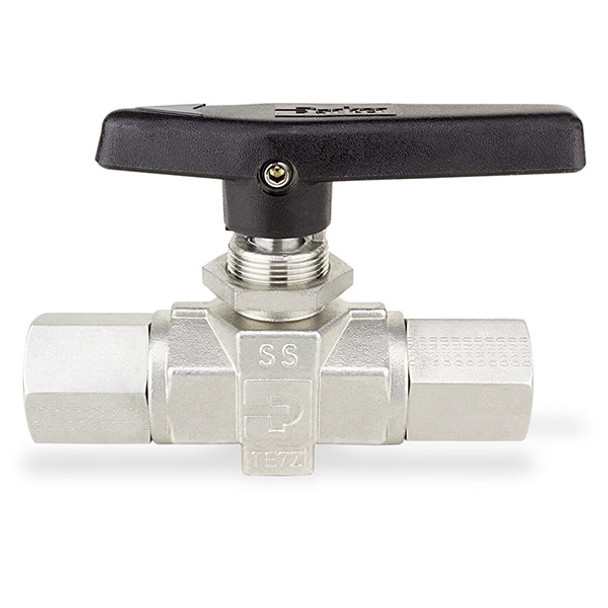

Parker IVD B Series Ball Valve, 2-Way Valve, 3/4 in. A-LOK Compression Inlet & Outlet (Port 1 & 2), PCTFE Seat, Live-Loaded PTFE Packing w/ Nitrile Rubber Seals, 316 Stainless Steel Body, 6000 psig CWP, Cv = 6.42, -40 to 250 F Deg Temperature Rating, Pneumatic Actuator w/ Spring Return.
- Manufacturer: Parker Hannifin
- Brand/Division: Instrumentation Products
- LINKS_Browse All Parker Hannifin Products: /manufacturers/parker
- Product Category: Valves
- Product Family: B Series
- Product Type: Ball Valves
- Body Material: 316 Stainless Steel
- End 1 Size: 3/4 in.
- End 1 Type: A-Lok
- End 2 Size: 3/4 in.
- End 2 Type: A-Lok
- Flow Rate: 6.42
- LINKS_Browse All B Series Products: /manufacturers/parker/b-series
- Pressure Rating: 6000 psig CWP
- Seal Material: Live-Loaded PTFE Packing w/ Nitrile Rubber
- Seat Material: PCTFE
- Temperature Rating: -40°F to 250°F
