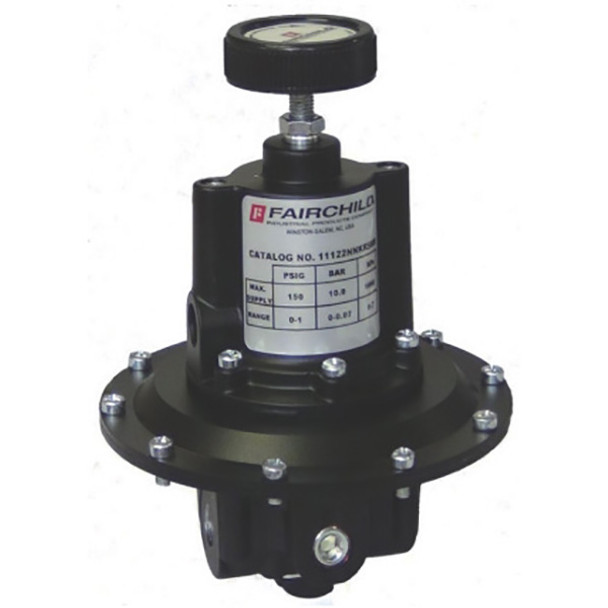

11142HJKREB Fairchild Model 11 Low Pressure Precision Pressure Regulator

Image may represent a range of products. Product may vary based on listed specifications.

Rotork Fairchild Products Pneumatic Precision Low Pressure Regulator, 1/4"-19 BSPP Port, 0 to 6 PSI, Aluminum, Fluorocarbon Diaphragm, Bonnet Mount, Knob Adjustment, Relieving, Normal Bleed, Pneumatic Precision Low Pressure Regulator with Tapped Exhaust Vent.

Manufacturer: Fairchild Products
DOCS_Fairchild Pneumatic Pressure Regulator Product Matrix: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/rotork-fairchild-pneumatic-pressure-regulators-catalog.pdf
DOCS_Rotork Fairchild Model 11 Low Pressure Regulator Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/rotork-fairchild-model-11-low-pressure-regulator-specs.pdf
Adjustment Type: Knob
Air Consumption: 20 SCFM @ 100 psig (Flow), 0.5 SCFM (Exhaust)
Body Material: Aluminum
Diaphragm Material: Fluorocarbon
End Connection: BSPP Threaded x BSPP Threaded
Inlet Pressure: 150 psig
Mounting Hole Diameter: (2) 1/4" - 20 UNC
Outlet Pressure: 0 to 6 psi
Product Family: Model 11
Product Type: Precision Pressure Regulators
Size: 5-1/4 in. Diam. x 6-1/2 in. H
Temperature Rating: -40° to 200 °F (Ambient)
LINKS_Browse All Fairchild Products Products: /manufacturers/fairchild-industrial-products
LINKS_Browse All Model 11 Products: /manufacturers/fairchild-industrial-products/model-11-high-precision
Port 1 Size: 1/4" - 19 TPI x 1/4" - 19 TPI
Product Category: Regulators
Regulator Type: Low Pressure Precision Pressure Regulator
