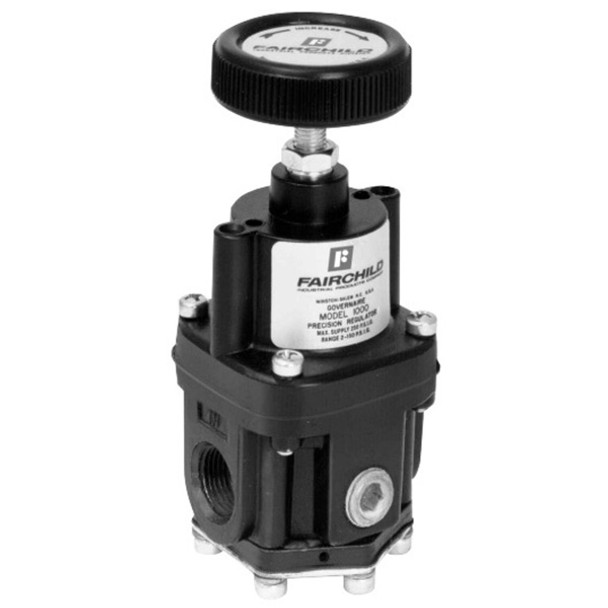

1062U Fairchild Model 1000 No Bleed Pressure Regulator

Image may represent a range of products. Product may vary based on listed specifications.

Rotork Fairchild Products Pneumatic Precision High Pressure Regulator, 1/4" BSPT Pipe, 2 to 150 PSIG, Zinc, Buna-N and Dacron Diaphragm, Knob Adjustment, No Bleed, Pneumatic Precision High Pressure Regulator with Tapered Exhaust Vent.

  • Manufacturer: Fairchild Products
  • DOCS_Fairchild Model 1000 Precision Pressure Regulator Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/rotork-fairchild-model-1000-precision-pressure-regulator-specs.pdf
  • DOCS_Fairchild Pneumatic Pressure Regulator Product Matrix: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/rotork-fairchild-pneumatic-pressure-regulators-catalog.pdf
  • Adjustment Type: Knob
  • Air Consumption: 50 SCFM @ 100 psig (Flow), 8 SCFM (Exhaust)
  • Body Material: Zinc
  • Diaphragm Material: Buna-N on Dacron
  • End Connection: BSPT Threaded x BSPT Threaded
  • Inlet Pressure: 250 psig
  • Mounting Hole Diameter: (2) #10-32 UNF x 0.38 in.
  • Outlet Pressure: 2 to 150 psig
  • Product Family: Model 1000
  • Product Type: Pressure Regulators
  • Size: 2-1/8 in. L x 2-1/8 in. W x 5 in. H
  • Temperature Rating: -40° to 200 °F (Ambient)
  • CUSTOM_Special Order: TRUE
  • Port 1 Size: 1/4 in. x 1/4 in.
  • Product Category: Regulators
  • Regulator Type: No Bleed Pressure Regulator

1062U
