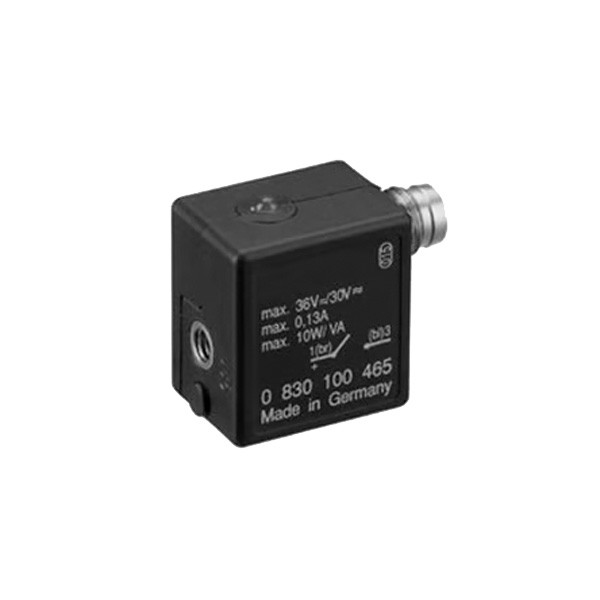

0830100467 Aventics Series SN2 Sensor

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series SN2 Sensor, Indirect Mounting for Series TRB, PRA, ITS, MNI, CSL-RD, ICM, RPC, TRR, FLT, CVI, with Stretched Impulse, Reed Switch, 12 to 36 VDC & 12 to 30 VAC Operating Voltage, 10 W / 10 VA Switching Capacity, IP67, -20 to 80 Deg C Ambient Temperature, 27 Ohm Protective Resistor for Reed, 0.13 A Max. DC Switching Current, 0.13 A Max. AC Switching Current, M8 Plug (4-Pin), Protected against Polarity Reversal, 50 g / 11 ms Shock Resistance, 35 g (50 � 2000 Hz) Vibration Resistance, Epoxy Resin Housing Material, Red LED Status Display.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Sensors
Product Family: Series SN2
Product Type: Sensors
Housing Material: Epoxy Resin
IP Rating: IP67
Max. Ambient Temperature: 80 °C
Min. Ambient Temperature: -20 °C
Operational Voltage: 12 to 36 VDC
Operational Voltage: 12 to 30 VAC
