Image may represent a range of products. Product may vary based on listed specifications.
Aventics

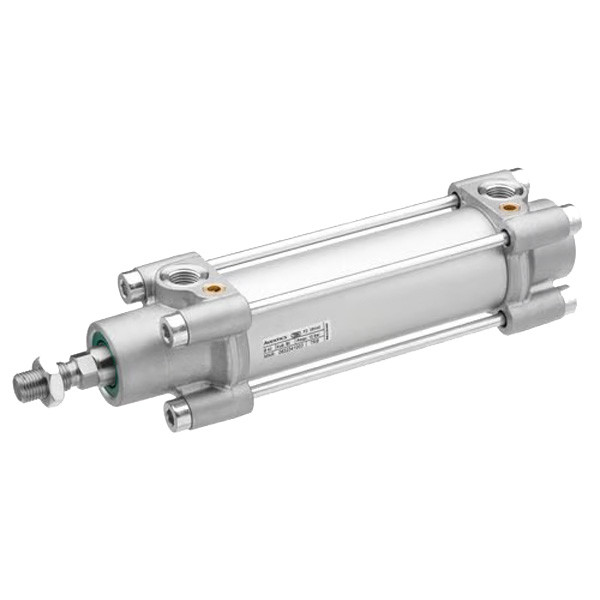

Aventics Series TRB Tie Rod Cylinder, ISO 15552, 32 mm Piston Diameter, 80 mm Stroke, G 1/8 Ports, Double-Acting, Pneumatic Adjustable Cushioning, 16.5 mm Cushioning Length, 4.8 J Cushioning Energy, Piston with Magnet, Single Rod, M10x1.25 External Threaded Piston, Standard Industry Scraper, -20 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 435 N Retracting Piston Force, 505 N Extracting Piston Force, 1.5 to 10 bar Working Pressure, 0.46 kg Weight 0 mm Stroke, 0.024 kg Weight +10 mm Stroke, 1600 mm Stroke Max.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series TRB
- Product Type: Tie Rod Cylinders
- Max. Ambient Temperature: 80 °C
- Max. Medium Temperature: 80 °C
- Min. Ambient Temperature: -20 °C
- Min. Medium Temperature: -20 °C
- Stroke: 80 mm
- Working Pressure: 1.5 to 10 bar
- Accessories for: Actuators
