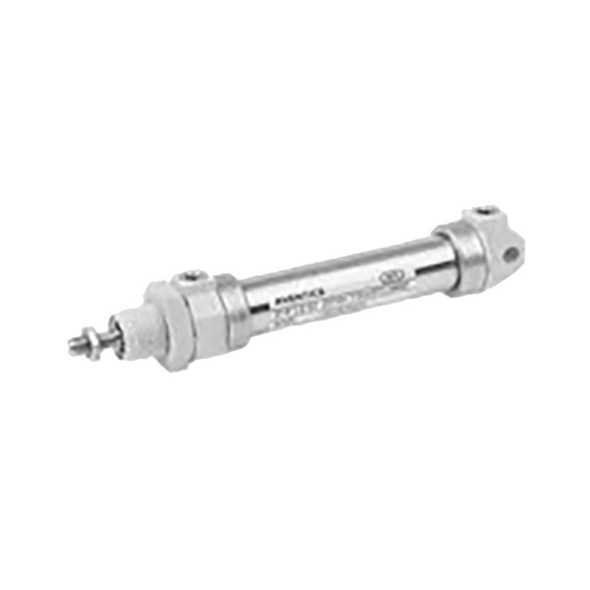

0822331206 Aventics Series MNI Mini Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series MNI Mini Cylinder, ISO 6432, 12 mm Piston Diameter, 125 mm Stroke, M5 Ports, Double-Acting, Elastic Cushioning, Piston with Magnet, Single Rod, M6 External Threaded Piston, Standard Industry Scraper, -25 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 53 N Retracting Piston Force, 71 N Extracting Piston Force, 1 to 10 bar Working Pressure, 0.07 J Impact Energy, 0.073 kg Weight 0 mm Stroke, 0.0046 kg Weight +10 mm Stroke, 600 mm Stroke Max, 0.1305 kg Weight.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Actuators
Product Family: Series MNI
Product Type: Mini Cylinders
Max. Ambient Temperature: 80 °C
Max. Medium Temperature: 80 °C
Min. Ambient Temperature: -25 °C
Min. Medium Temperature: -25 °C
Stroke: 125 mm
Working Pressure: 1 to 10 bar
