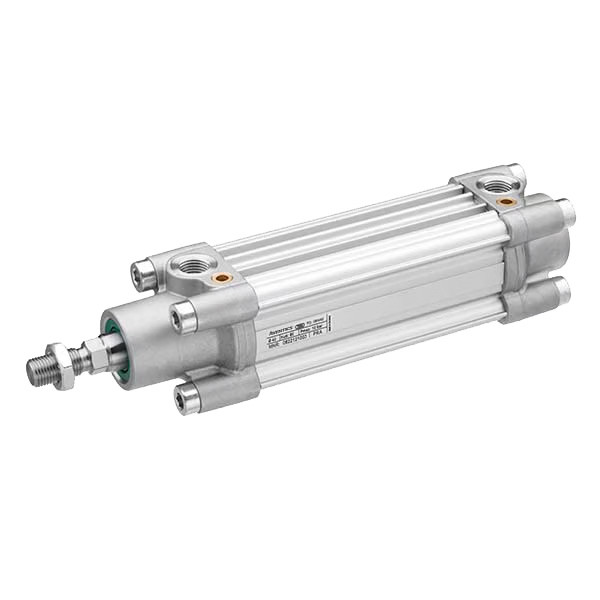

0822122006 Aventics PRA Series Profile Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics PRA Series Profile Cylinder, ISO 15552, 50 mm Piston Diameter, 160 mm Stroke, G 1/4 Ports, Double-Acting, Pneumatic Adjustable Cushioning, 17 mm Cushioning Length, Piston with Magnet, Single Rod, M16x1.5 External Threaded Piston, Standard Industry Scraper, -20 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 1035 N Retracting Piston Force, 1235 N Extracting Piston Force, 1.5 to 10 bar Working Pressure, 15 J Impact Energy, 1.06 kg Weight 0 mm Stroke, 0.047 kg Weight +10 mm Stroke, 2100 mm Stroke Max.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Actuators
Product Family: Series PRA
Product Type: Profile Cylinders
Max. Ambient Temperature: 80 °C
Max. Medium Temperature: 80 °C
Min. Ambient Temperature: -20 °C
Min. Medium Temperature: -20 °C
Stroke: 160 mm
Working Pressure: 1.5 to 10 bar
