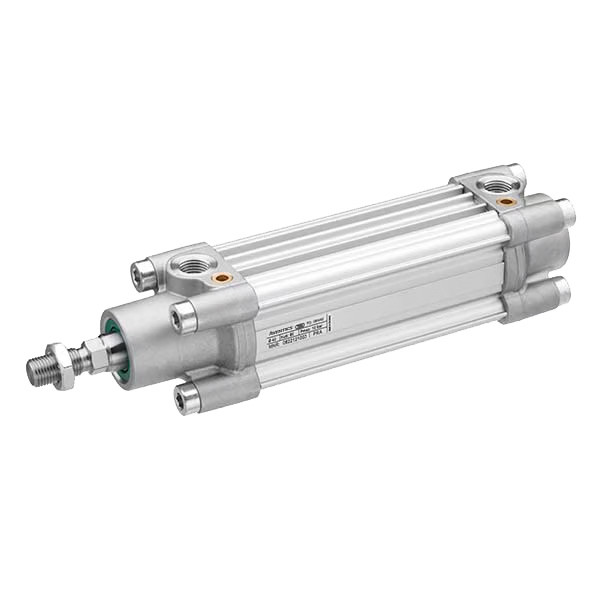

0822121001 Aventics PRA Series Profile Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics PRA Series Profile Cylinder, ISO 15552, 40 mm Piston Diameter, 40 mm Stroke, G 1/4 Ports, Double-Acting, Pneumatic Adjustable Cushioning, 19 mm Cushioning Length, Piston with Magnet, Single Rod, M12x1.25 External Threaded Piston, Standard Industry Scraper, -20 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 660 N Retracting Piston Force, 790 N Extracting Piston Force, 1.5 to 10 bar Working Pressure, 9 J Impact Energy, 0.65 kg Weight 0 mm Stroke, 0.032 kg Weight +10 mm Stroke, 1900 mm Stroke Max.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Actuators
Product Family: PRA Series
Product Type: Profile Cylinders
