Image may represent a range of products. Product may vary based on listed specifications.
Aventics

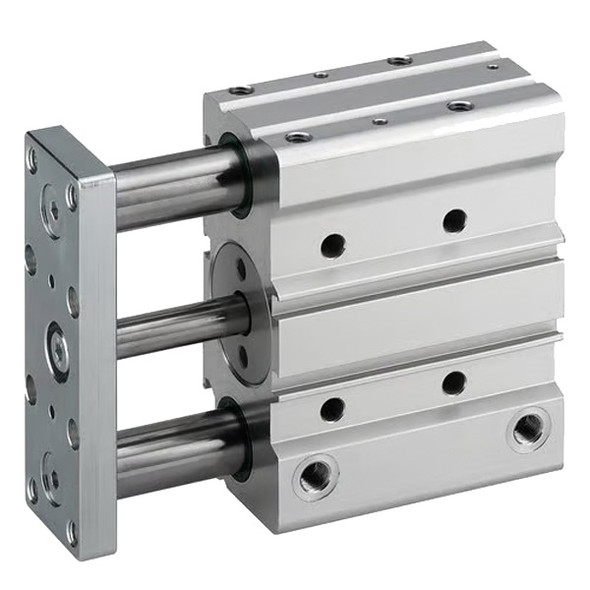

Aventics Series GPC-BV Guide Cylinders, 12 mm Piston Diameter, 6 mm Piston Rod Diameter, 25 mm Stroke, Plain Bearing, Double-Acting, Elastic Cushioning, Piston with Magnet, M5 Port, 0 to 5 mg/m^3 Oil Content of Compressed Air, -10 to 70 Deg C Ambient Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 53 N Retracting Piston Force, 71 N Extracting Piston Force, 2 to 8 bar Working Pressure, 0.1 J Impact Energy, 0.5 m/s Max. Speed, 50 Micron Max Particle Size, Aluminum Housing Material, Polyurethane Seal Material, Steel, Chrome-plated Front Plate.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series GPC-BV
- Product Type: Guide Cylinders
- Housing Material: Aluminum
- Max. Ambient Temperature: 70 °C
- Micron Rating: 50 µm
- Min. Ambient Temperature: -10 °C
- Seal Material: Polyurethane
- Stroke: 25 mm
- Working Pressure: 2 to 8 bar
- Accessories for: Actuators
