Aventics

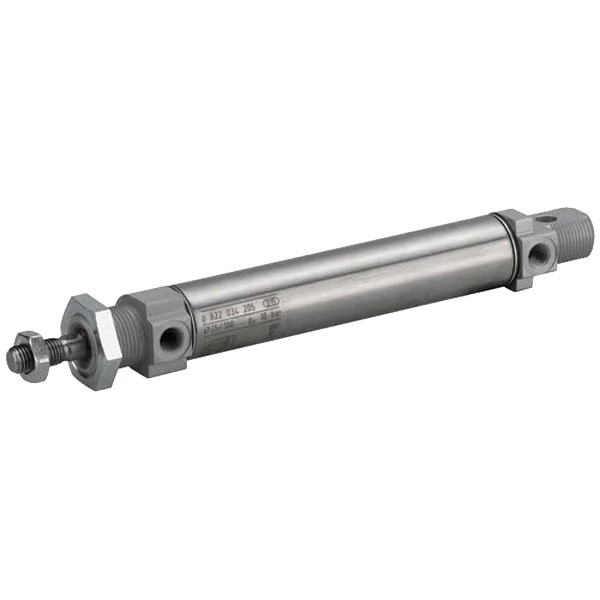

Aventics Series MNI Mini Cylinder, ISO 6432, 25 mm Piston Diameter, 200 mm Stroke, G 1/8 Ports, Double-Acting, Elastic Cushioning, Piston without Magnet, Single Piston Rod, M10x1.25 External Threaded Piston, Standard Industry Scraper, -25 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 260 N Retracting Piston Force, 309 N Extracting Piston Force, 1 to 10 bar Working Pressure, 0.35 J Impact Energy, 0.233 kg Weight 0 mm Stroke, 0.013 kg Weight +10 mm Stroke, 1300 mm Stroke Max, 0.493 kg Weight.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series MNI
- Product Type: Mini Cylinders
- Max. Ambient Temperature: 80 °C
- Max. Medium Temperature: 80 °C
- Min. Ambient Temperature: -25 °C
- Min. Medium Temperature: -25 °C
- Stroke: 200 mm
- Working Pressure: 1 to 10 bar
- Accessories for: Actuators
