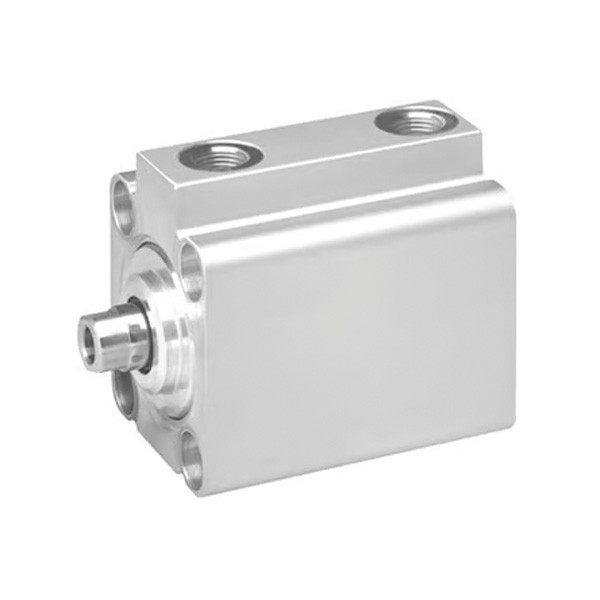

0822010552 Aventics Series KHZ Short-Stroke Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series KHZ Short-Stroke Cylinder, 40 mm Piston Diameter, 15 mm Stroke, G 1/8 Ports, Double-Acting, Elastic Cushioning, Piston without Magnet, M6 External Threaded Piston, Standard Industry Scraper, -25 to 80 Deg C Ambient/Medium Temperature Range, 6.3 bar Pressure for Determining Piston Forces, 720 N Retracting Piston Force, 792 N Extracting Piston Force, 0.6 to 10 bar Working Pressure, 0.24 J Impact Energy, 0.285 kg Weight 0 mm Stroke, 0.052 kg Weight +10 mm Stroke, 50 Micron Max Particle Size, 0 mg/m^3 Min. Oil Content of Compressed Air.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Actuators
Product Family: Series KHZ
Product Type: Short-Stroke Cylinders
