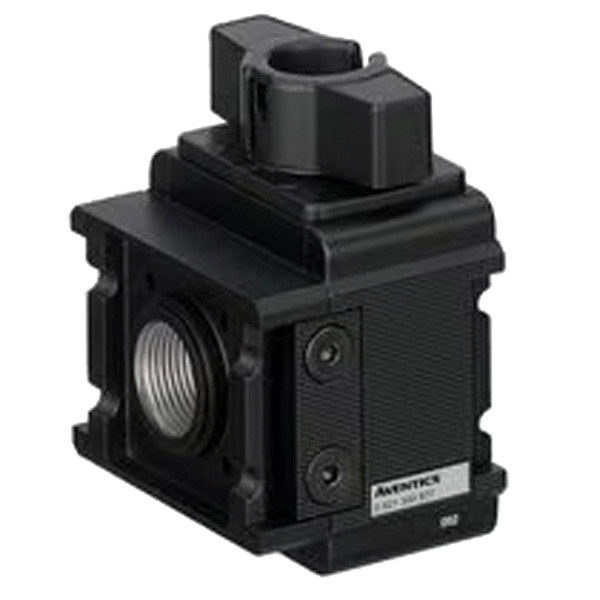

0821300976 Aventics Series NL6-BAV 3/2-Shut-Off Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series NL6-BAV 3/2-Shut-Off Valve, Mechanically Operated, Ball Valve, Rotary Switch Acutating Element, Lockable for Padlocks, Metal/Metal Sealing, G 3/4 Compressed Air Connection, G 1/2 Exhaust, Nominal Flow 25000 l/min Qn 1 to 2, 110 l/min Qn 2 to 3, 0 to 10 bar Working Pressure, -10 to 60 Deg C Ambient Temperature Range, Die Cast Aluminum Housing Material, Acrylonitrile Butadiene Rubber Seal Material, Acrylonitrile Butadiene Styrene Front Cover Material, Polyoxymethylene Actuating Control Material.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series NL6
Product Type: Shut-Off Valves
Actuating Control: Rotary Switch
Housing Material: Aluminum
Max. Ambient Temperature: 60 °C
Min. Ambient Temperature: -10 °C
Seal Material: Acrylonitrile Butadiene Rubber
Working Pressure: 0 to 10 bar
