Image may represent a range of products. Product may vary based on listed specifications.
Aventics

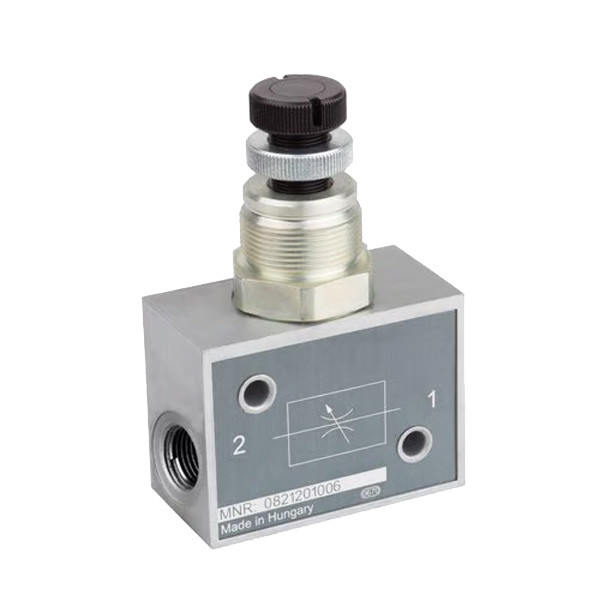

Aventics Series CH01 Pneumatic Throttle Valve, 2 mm Thottle Bore Diameter, G 1/8 Internal Thread Compressed Air Connection Port 1 x G 1/8 Internal Thread Compressed Air Connection Port 2, 140 l/min Nominal Flow, 0 to 10 bar Working Pressure, 0 to 80 Deg C Ambient/Medium Temperature Range, Aluminum Housing Material, Acrylonitrile Butadiene Rubber Seal Material, Steel, Chrome-plated Flow Control Screw Material.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series CH01
- Product Type: Pneumatic Throttle Valves
- Housing Material: Aluminum
- Max. Ambient Temperature: 80 °C
- Max. Medium Temperature: 80 °C
- Min. Ambient Temperature: 0 °C
- Min. Medium Temperature: 0 °C
- Nominal Flow Qn: 140 l/min
- Seal Material: Acrylonitrile Butadiene Rubber
- Working Pressure: 0 to 10 bar
