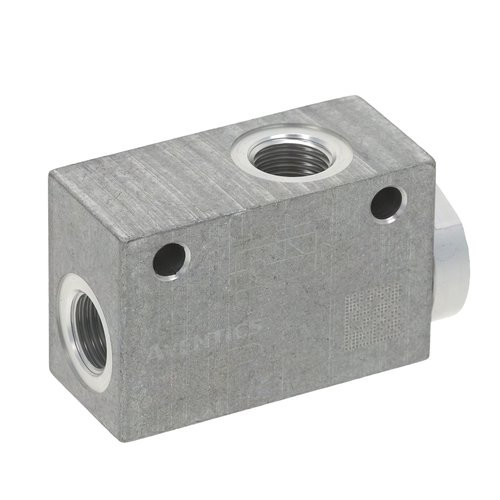

Image may represent a range of products. Product may vary based on listed specifications.
Aventics
AVENTICS Series Quick Exhaust valves are pneumatic quick exhaust valves with aluminium or polymer bodies. They speed the exhausting of air cylinders, clutches or other pneumatic devices. Sensitive with a large internal air passages exhaust air quickly for top speed of your operation and benefits of a special diaphragm design that eliminates chattering associated with exhaust valves.
- Manufacturer: Aventics
- Product Category: Valves
- Product Type: Exhaust Valves
- Nominal Width NW: 6 mm
- Medium: Compressed Air
- Compressed Air Connection Input: G 1/4
- Compressed Air Connection Type 1: Internal Thread
- Compressed Air Connection 2: G 1/4
- Compressed Air Connection type 2: Internal Thread
- Port 3 (Exhaust): G 3/8
- Compressed Air Connection Type 3: Internal Thread
- Nominal Flow Qn 1 to 2: 1000 l/min
- Nominal Flow Qn 2 to 3: 2050 l/min
- Min. Working Pressure: 0.5 bar
- Max. Working Pressure: 10 bar
- Min. Ambient Temperature: 0 °C
- Max. Ambient Temperature: 80 °C
- Min. Medium Temperature: 0 °C
- Max. Medium Temperature: 80 °C
- Weight: 0.11 kg
- Housing Material: Aluminum
- Seal Material: Acrylonitrile Butadiene Rubber
