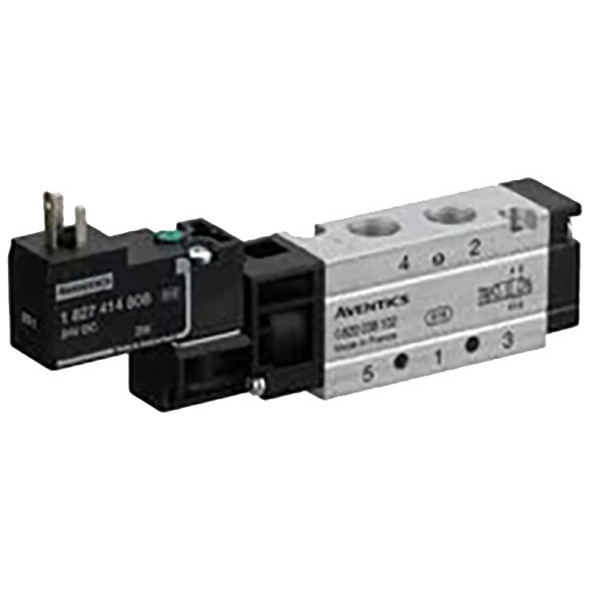

0820038602 Aventics Series WV02 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series WV02 5/2-Directional Valve, Double Solenoid, Electrical Activation, Spool Valve, Positive Overlapping, Soft Seal, without Detent, Internal Thread, G 1/8 Compressed Air Connection, 500 l/min Nominal Flow, 1.5 to 10 bar Working Pressure, Plug Connection, ISO 15217, Form C, IP65, Internal Pilot, 0 to 50 Deg C Ambient Temperature Range, 24 VDC Operational Voltage, -10% / +10% Voltage Tolerance, 2W Power Consumption, 15 mm Coil Width, 15 mm Pilot Valve Width, 100% Duty Cycle, 8 ms Switch-on Time.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series WV02
Product Type: Directional Valves
