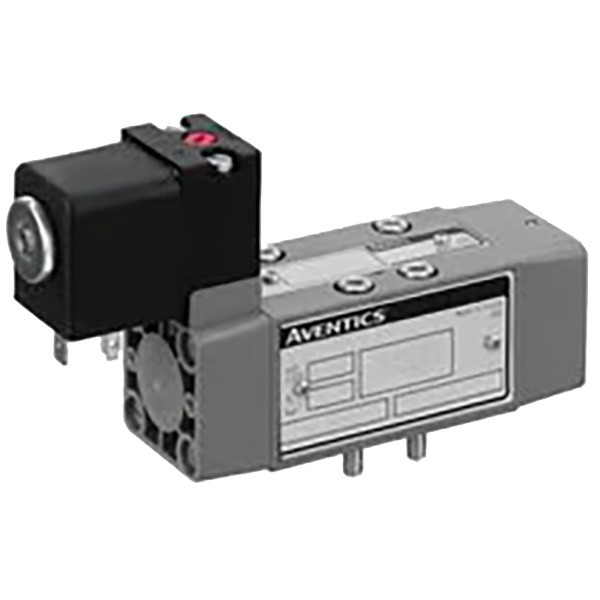

0820024035 Aventics Series IS12 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series IS12 5/2-Directional Valve, Electrical Activation, Size 1, Spool Valve, Positive Overlapping, 5/2, with Spring Return, Soft Seal, with Detent, Compressed Air Connection Input/Output/Exhaust/Pilot Exhaust: Base Plate ISO 5599-1, Plate Connection, 1060 l/min Nominal Flow, 2.2 to 10 bar Working Pressure, Plug Connection, EN 175301-803, Form A, Internal Pilot, 24 VDC Operational Voltage, -10% / +10% Voltage Tolerance, 2.7W Power Consumption, 30 mm Pilot Valve Width, ISO 1 Frame Size, 216 Ohm Nominal Resistance RW, Single Base Plate Principle.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series IS12
Product Type: Directional Valves
