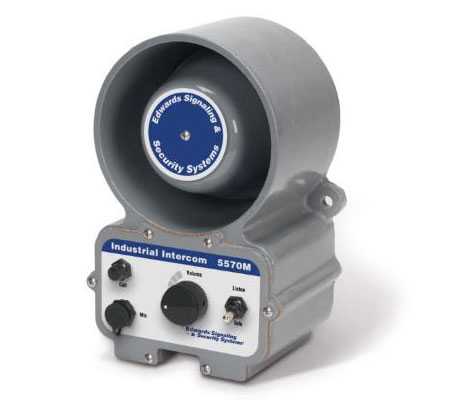

Millennium Industrial Intercom
Edwards Signaling 12th Dec 2022
The Millennium Industrial Intercom: When you need an intercom that’s up for just about anything.
Industrial and hazardous locations are no match for the 5570 Intercom and speaker. This heavy-duty, two-way communications device is available in 120/240VAC 50/60Hz and 24VAC/DC, so it can fit into just about any communications infrastructure. Voltage input for the 120/240VAC model is internally switch selectable for easy configuration. The AC line has a 1/2 amp 250-volt type GMC fuse.
The speakers are rated for 30 Watts, 16 Ohms. Their frequency response of 150Hz to 12kHz covers the full range of voice communication.
For even more flexibility, you can also select a balanced or unbalanced line operation and Master or Satellite mode configuration. The unit has transformer isolated audio inputs and a choice of four alert tones. There is also an optional hand-held, noise-cancelling microphone to combat high ambient noise.
With NEMA Type 4X and marine listed enclosures, they are ideal for indoor or outdoor use. They are also listed for Class I Div. 2, Class II Div. 2, and Class III hazardous location areas.
Features
• Division 2 Rated
• NEMA 3R and 4X
• Marine Rated
• 4 Dipswitch-Selectable Call Tones
• 120VAC/240VAC and 24VAC/24VDC Models
• Auxiliary Signal Activation
Applications
• Petrochemical plants
• Offshore oil platforms
• Textile mills
• Airports
• Bottling facilities
• Food processing
• Pulp and paper mills
• Waste water treatment facilities
