Protecting Paintings and Other Hanging Art Objects
APPLICATION
Paintings and other hanging works of art can be protected with surface or recessed-mount wide gap Sentrol switches.
INSTALLATION
Inspect frame for area to place Interlogix magnet and switch.

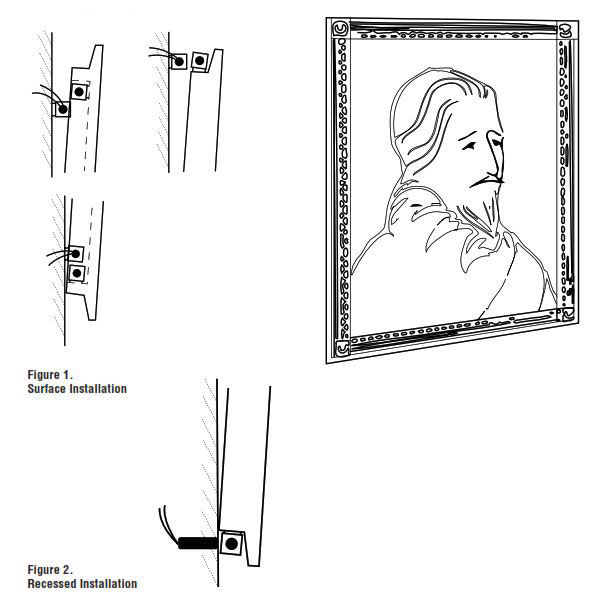

For surface mount, attach magnet to frame as in Figure 1. Install switch on wall behind magnet.
For recessed mount, install switch in wall at right angles to magnet, forming an "L" with the switch and magnet as in Figure 2.
Wire into 24-hour loop, if available, to provide protection even if the perimeter loop is off.
Note: Use wide gap switches if gap is more than 1/2" (1.27 cm).
RECOMMENDED PRODUCTS
1035W, 1145W, 1275W
